Paper Info
- Paper Name: Censored Planet: An Internet-wide, Longitudinal Censorship Observatory
- Conference: CCS ‘20
- Author List: Ram Sundara Raman, Prerana Shenoy, Katharina Kohls, Roya Ensafi
- Link to Paper: here
- Food: Fruit salad
Problem
There is a rapid increase in the number of restrictions to online freedom. This paper talks about technical censorship where one controls the router. Such limits include dropping packets, send TCP resets, and may provide DNS responses that are incorrect or give an HTML page injected with a false error page.
Two of the main projects that predate censored Planet are Open Observatory of Network Inference (OONI) where volunteers around the world download an application which periodically tests connectivity to sites of interest and ICLab which works by gaining access to various IP addresses with the help of VPNs. Both of these approaches work although they have drawbacks. One of the issue with OONI is scalability because it is impossible to get more volunteers. Additionally, there is a safety risk for volunteers who are residing in a country which is undergoing internet censorship. With regard to ICLab, it is practically hard to find more VPNs with the limited infrastructure.
Solution
Censored Planet is a platform designed to measure internet censorship across six protocols (IP, DNS, HTTP, HTTPS, Echo, and Discard) using four extant techniques:
- Augur uses IP packet IDs as a side channel to detect TCP/IP blocking without requiring the active assistance of the machine whose connectivity is being measured.
- Satellite and Iris detect DNS manipulation comparing trusted resolvers to the results from open resolvers.
- Quack uses public Echo/Discard servers to detect keyword censorship and the directionality of blocking.
- Hyperquack extends the same techniques from Quack to HTTP(S) by inserting keywords into HTTP headers sent to web servers with known behavior.

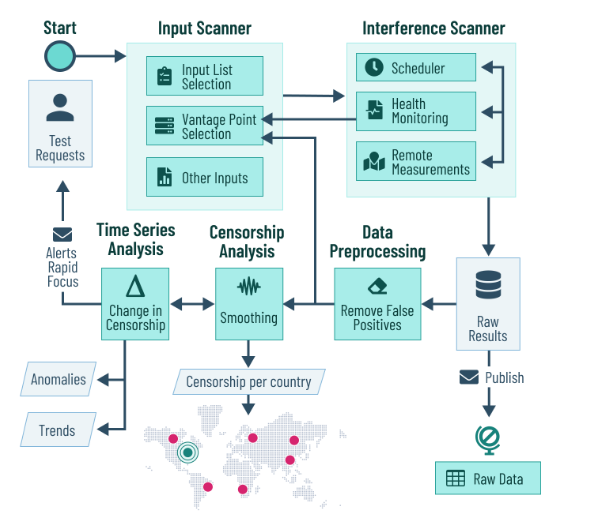

Censored Planet uses a modular design which is useful for running large scale experiments. It has different scanners and analysis techniques buit into it:
- Test requests based on requests from the community or alerts from previous runs.
- Input scanner that chooses a list of domains to test, a list of vantage points etc.
- Interference scanner for testing domains to ensure scale and coverage.
- Data preprocessing to remove false positives.
- Censorship and time series analysis for the collected data.
Naturally, there are ethical considerations to this sort of project. Most censorship measurements rely on hosts inside censored countries to intentionally attempt to trigger censorship, opening them up to potential retaliation. Censored Planet’s measurement techniques work at a distance from end users (2 traceroute hops for Augur), minimizing their risk. Additionaly, the overhead incurred by sites used to measure against is considered with rate limiting in place as well as open WHOIS data and an informative page served on port 80 of participating hosts with the option to opt out.
Discussion
The censorship can be more than just the talk in this paper, this paper triggered a discussion about censorship at countries’ level. For example, many countries have built firewalls to censor some websites and services. For example, Facebook and Twitter cannot be accessed in some countries, therefore, people have to use VPN to get accessed to those websites. We also talked about the development of techniques used to build the internet firewall. The countries’ level firewall was pretty simple at the beginning, probably just blocked IPs and websites, with time going on, they started to check the http header and then http contents, even to DNS server. Meanwhile, this competition gets more and more sophisticated, techniques like traffic analysis on data flow, machine learning approaches. Also, we thought censorship is a less common topic than some other topics in security. Also, those charts in that paper are not so clear, those charts made it difficult for people to follow. Also, the main contribution of this paper looks like combining many prior techniques into a large system, so there is a lot of engineering stuff inside this paper, but probably the novelty of this paper is not enough. An idea about their follow-up research could be something like PhishFarm, for example, how can we find something we would like to censor, how long does it take to actually start censoring some pieces of information.
The paper itself points out that their approach has inherent limitations such as course granularity of vantage points, as well as limitations of the measurement techniques they built upon. Additionally, their measurement probes are very clear about their purpose and could conceivably be blocked or intentionally misled by censors.
Our discussion of the paper mainly focused on the human rights impacts of censorship and the importance of these sorts of measurements as well as personal experiences with internet censorship. We also discussed the sheer magnitude of computing power required to analyze all traffic across a country for the purposes of censorship. Another topic that came up was the prevalence of this sort of censorship paper, as most of us hadn’t come across this sort of thing before which is also a testament to its quality since it was still approachable. A notable exception to that was the charts, particularly the one on the coefficient of variation by country which remains impenetrable for this author.
